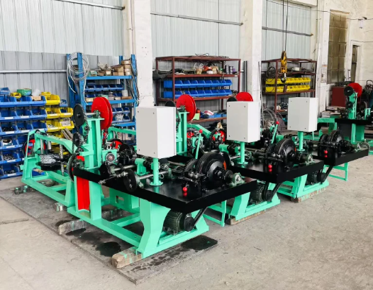

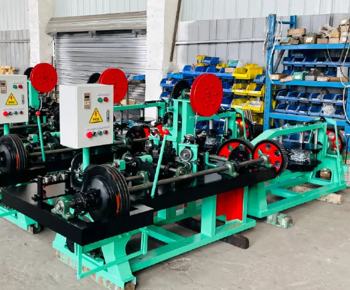

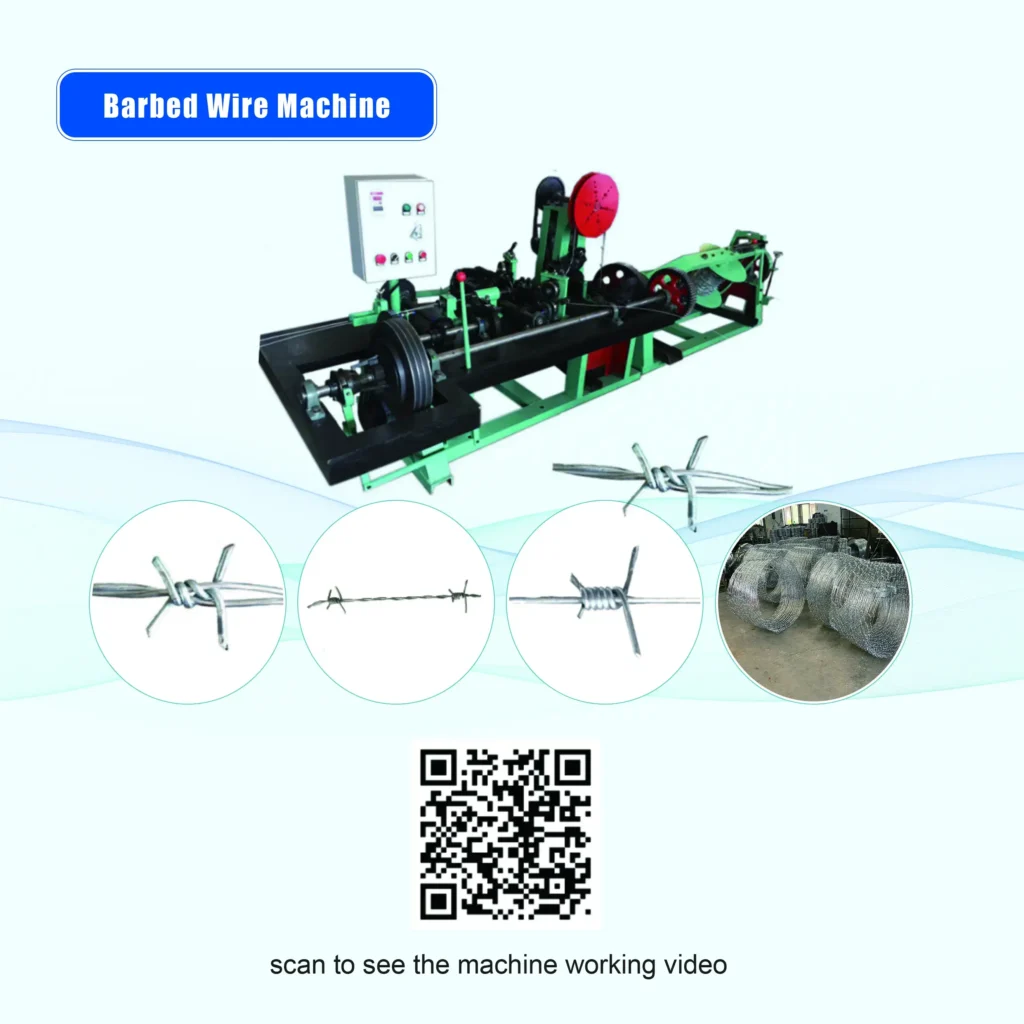

Barbed Wire Machine

Wire Forming Machine

Description

Product Introduction

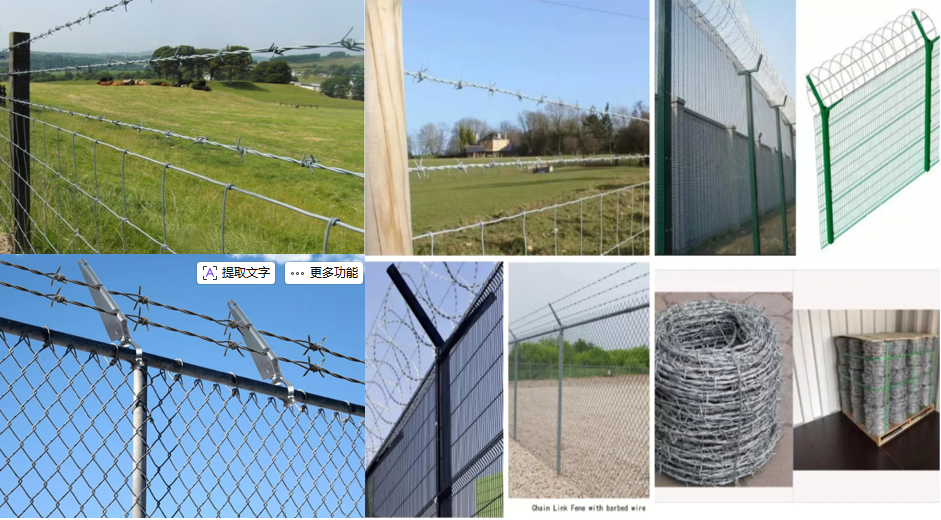

As its name suggests, the machine is mainly used to produce barbed wire, a widely used fencing material for security and protection. Barbed wire is strong, cost-effective, and easy to install, making it ideal for farms, ranches, factories, borders, prisons, and other restricted areas. With sharp barbs that act as a deterrent, it effectively prevents intrusions and secures property. Cowan barbed wire machines ensure high efficiency, stable performance, and long service life, helping customers achieve reliable and large-scale production.

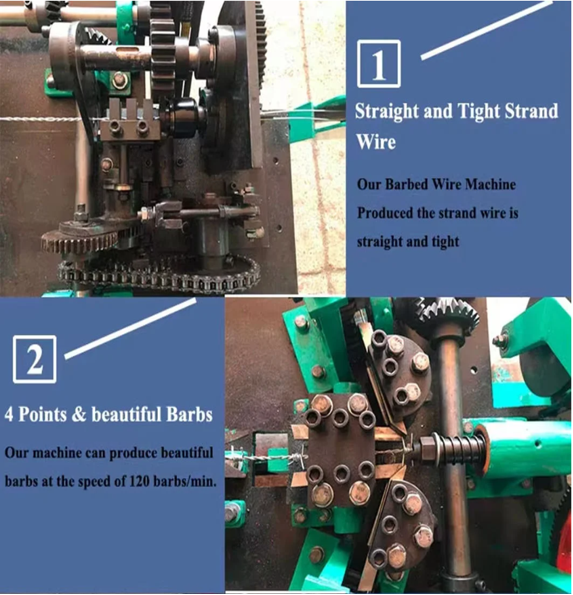

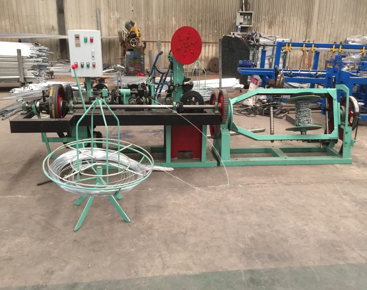

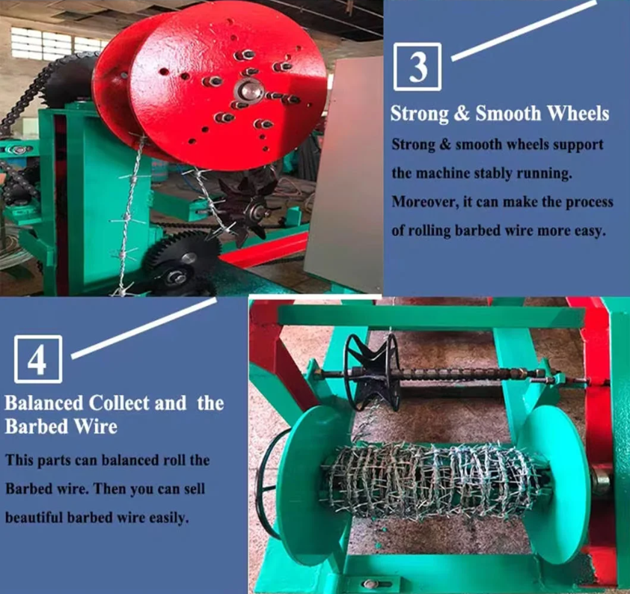

Barbed Wire Machine is designed to make single twist barbed wire or double twist barbed wire. It includes two main parts of wire wrap machine and barbed wire collection machine.

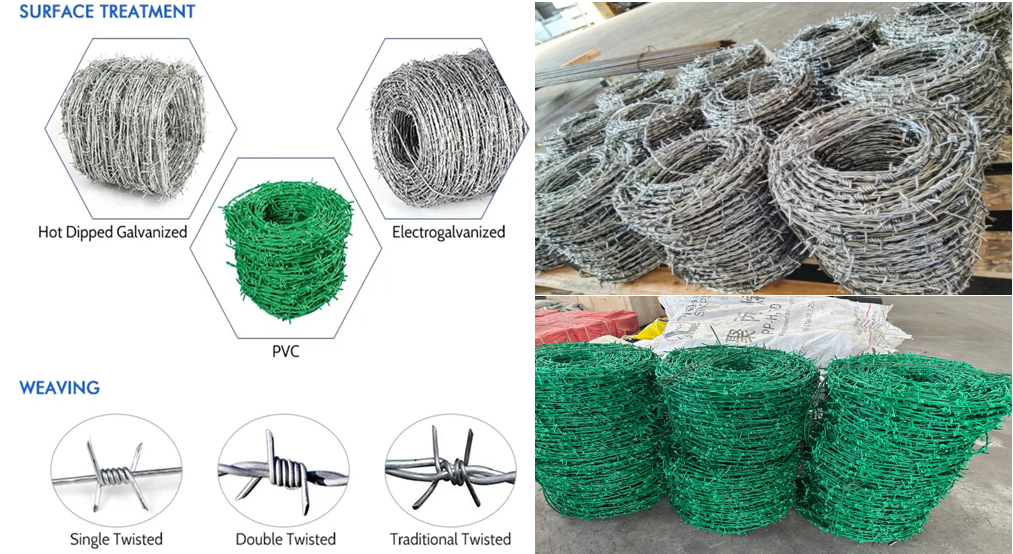

The materials to make barbed wire : Generally used is the hot -diped eletro-galvanized and PVC coated wire AISI430 and AISI304, PVC-Plated, Low Carbon Steel Wire, Thermo-Plated with Zinc etc.

Product Parameters

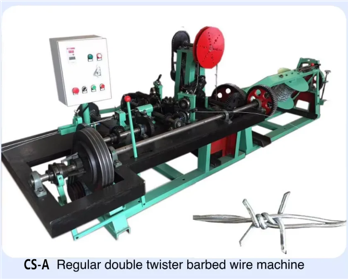

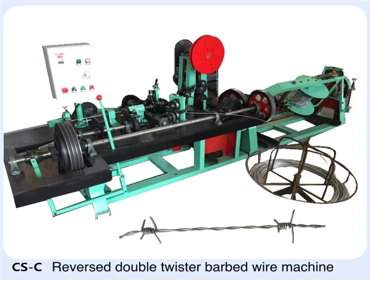

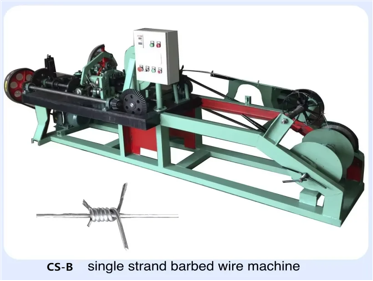

Barbed Wire Machine, also known as Barbed Wire Making Machine or Barbed Wire Fencing Machine, is designed for producing barbed wire efficiently. Cowan offers three types of machines to meet different production needs: the CS-A type for regular double twister barbed wire, the CS-B type for single strand barbed wire, and the CS-C type for reversed double twister barbed wire.

Type	CS-A	CS-B	CS-C
Main Wire Diameter	1.6-3.0mm(Max.800MPA)	1.3-3.2mm(Max.1700MPA)	1.6-3.0mm(Max.1300MPA)
Barb Wire Diameter	1.6-3.0mm(Max.700MPA)	1.3-3.2mm(Max.700MPA)	1.6-2.5mm(Max.700MPA)
Common Barb Space	3″,4″,5″,6″	3″,4″,5″,6″	4″,5″,6″
Motor Power	3.0KW	2.2KW	2.2KW
Twisted Number	3-5	–	7
Raw Material	Galvanized or PVC coated wires	Galvanized wires	Galvanized wires
Capacity	800-1700m/h	550-1100m/h	700-1100m/h
Total Weight	1000KG	750KG	750KG
Dimension	2000×1200×1400mm 1700×500×800mm	2700×1100×1300mm	3000×1100×1300mm
